Positionable Male Elbow
Driving Innovation for a Brighter Future
At Dawsons-Tech, we believe in the power of continuous improvement to shape a better tomorrow.

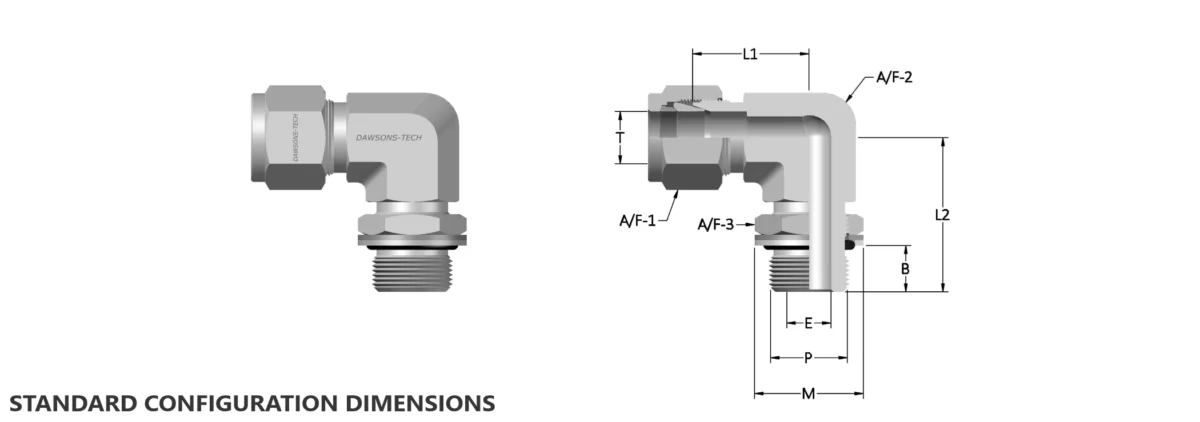

Positionable Male Elbow (Fractional Tube to ISO Parallel (PR) Male Thread)
| Tube OD | BSPP Male Thread | Dimensions in Inch | Dawsons-Tech Part No. | |||||||
| T | P | B | E | L1 | L2 | M | A/F1 | A/F2 | A/F3 | |
| 1/4 | 1/8 | 0.32 | 0.16 | 0.77 | 1.04 | 0.68 | 9/16 | 1/2 | 9/16 | DTPME-4-2PR |
| 1/4 | 1/4 | 0.36 | 0.19 | 0.85 | 1.27 | 0.90 | 9/16 | 5/8 | 3/4 | DTPME-4-4PR |
| 3/8 | 1/4 | 0.36 | 0.23 | 0.91 | 1.27 | 0.90 | 11/16 | 5/8 | 3/4 | DTPME-6-4PR |
| 3/8 | 3/8 | 0.37 | 0.28 | 1.02 | 1.46 | 1.04 | 11/16 | 13/16 | 7/8 | DTPME-6-6PR |
| 1/2 | 1/4 | 0.36 | 0.23 | 1.02 | 1.38 | 0.90 | 7/8 | 13/16 | 3/4 | DTPME-8-4PR |
| 1/2 | 3/8 | 0.37 | 0.31 | 1.02 | 1.46 | 1.04 | 7/8 | 13/16 | 7/8 | DTPME-8-6PR |
| 1/2 | 1/2 | 0.51 | 0.41 | 1.10 | 1.71 | 1.26 | 7/8 | 15/16 | 1-1/16 | DTPME-8-8PR |
| 5/8 | 1/2 | 0.51 | 0.47 | 1.10 | 1.71 | 1.26 | 1 | 15/16 | 1-1/16 | DTPME-10-8PR |
| 3/4 | 1/2 | 0.51 | 0.47 | 1.17 | 1.78 | 1.26 | 1-1/8 | 1-1/16 | 1-1/16 | DTPME-12-8PR |
| 3/4 | 3/4 | 0.51 | 0.62 | 1.17 | 1.92 | 1.62 | 1-1/8 | 1-1/16 | 1-3/8 | DTPME-12-12PR |
| 1 | 3/4 | 0.51 | 0.62 | 1.45 | 2.10 | 1.62 | 1-1/2 | 1-3/8 | 1-3/8 | DTPME-16-8PR |
| 1 | 1 | 0.55 | 0.78 | 1.45 | 2.11 | 1.91 | 1-1/2 | 1-3/8 | 1-5/8 | DTPME-16-16PR |
Positionable Male Elbow (Metric Tube to ISO Parallel (PR) Male Thread)
| Tube OD | BSPP Male Thread | Dimensions in mm | A/F1 | A/F2 | A/F3 | Dawsons-Tech Part No. | ||||
| T | P | B | E | L1 | L2 | M | ||||
| 6 | 1/8 | 8.1 | 4.0 | 19.6 | 26.4 | 17.3 | 9/16 | 1/2 | 9/16 | DTPME-6M-2PR |
| 6 | 1/4 | 9.1 | 4.8 | 21.6 | 32.3 | 22.9 | 9/16 | 5/8 | 3/4 | DTPME-6M-4PR |
| 8 | 1/8 | 8.1 | 4.0 | 21.3 | 27.4 | 17.3 | 5/8 | 9/16 | 9/16 | DTPME-8M-2PR |
| 8 | 1/4 | 9.1 | 5.9 | 22.4 | 32.2 | 22.9 | 5/8 | 5/8 | 3/4 | DTPME-8M-4PR |
| 10 | 1/4 | 9.1 | 5.9 | 25.9 | 35.0 | 22.9 | 3/4 | 13/16 | 3/4 | DTPME-10M-4PR |
| 10 | 3/8 | 9.4 | 7.9 | 25.9 | 37.1 | 26.4 | 3/4 | 13/16 | 7/8 | DTPME-10M-6PR |
| 12 | 1/4 | 9.1 | 5.9 | 25.9 | 35.0 | 22.9 | 7/8 | 13/16 | 3/4 | DTPME-12M-4PR |
| 12 | 3/8 | 9.4 | 7.9 | 25.9 | 37.1 | 26.4 | 7/8 | 13/16 | 7/8 | DTPME-12M-6PR |
| 12 | 1/2 | 13.0 | 9.5 | 27.9 | 43.4 | 32.0 | 7/8 | 15/16 | 1-1/16 | DTPME-12M-8PR |
| 12 | 3/4 | 13.0 | 9.5 | 29.7 | 48.8 | 41.1 | 7/8 | 1-1/16 | 1-3/8 | DTPME-12M-12PR |
